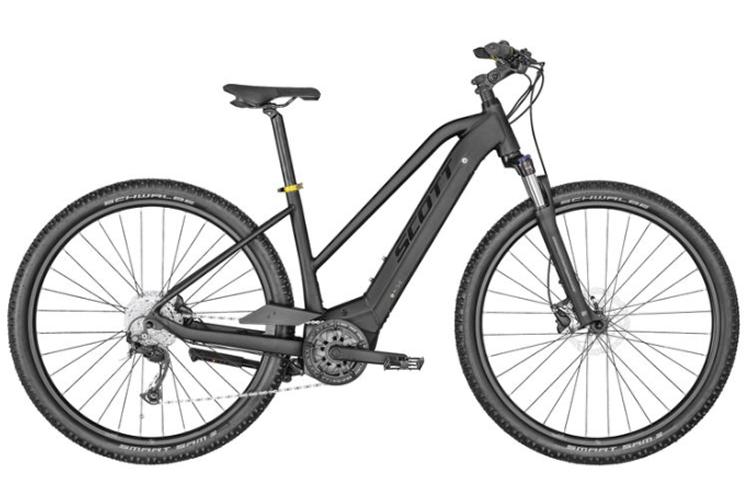

Meet the Sub Cross eRIDE 30, the easy way to explore gravel roads or smooth trails. The bike is equipped with the powerful Bosch Active drive unit, intelligently integrated into the frame for a slick and smooth design. An adjustable stem and ergonomic saddle result in optimal comfort.
FULL SPECIFICATIONS

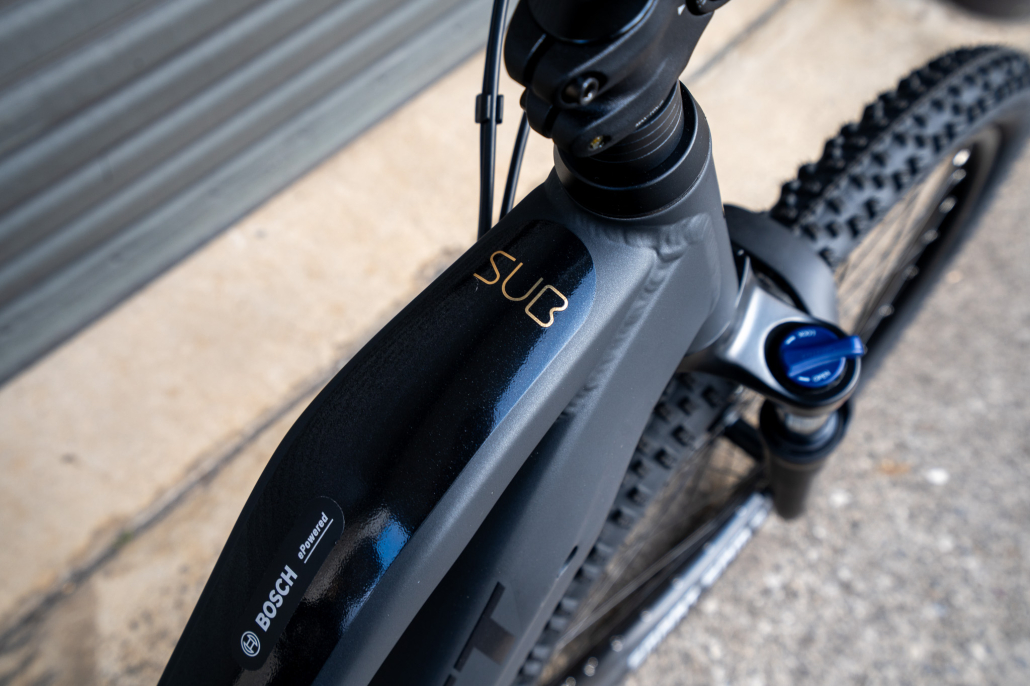

Frame Sub eRIDE 6061 Alloy

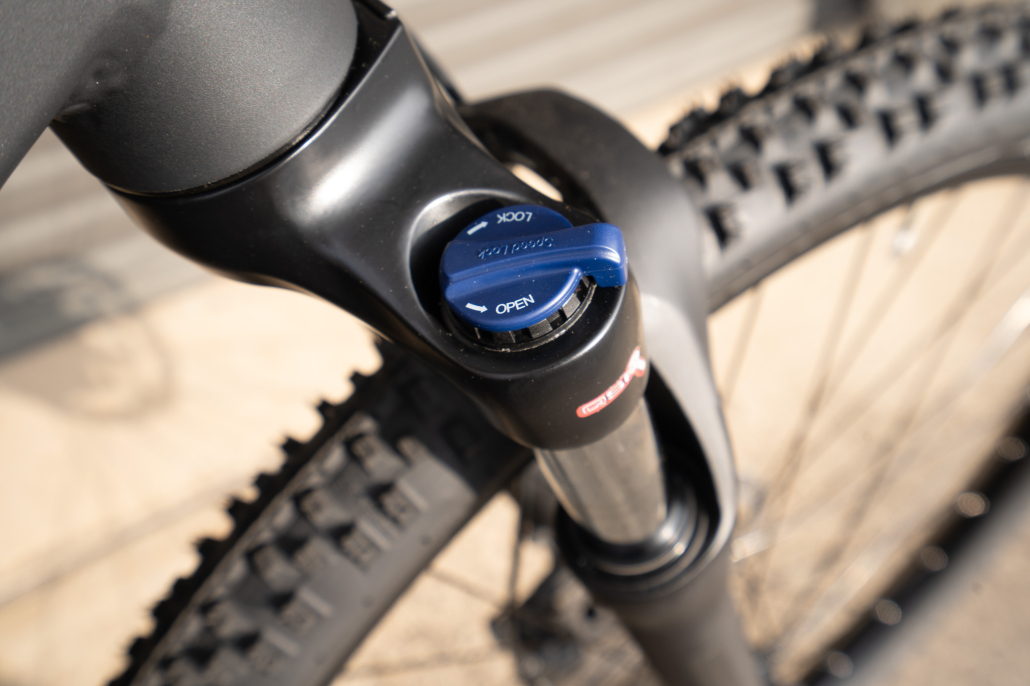

Fork SUNTOUR NVX 30 NLO DS QR 700C TAPERED / 63mm Travel
Drive Unit Bosch Active BES2
EU: 25kmh / US: 20mph
Battery 400Wh PowerTube Battery
Display Purion Display
Charger 2A Charger

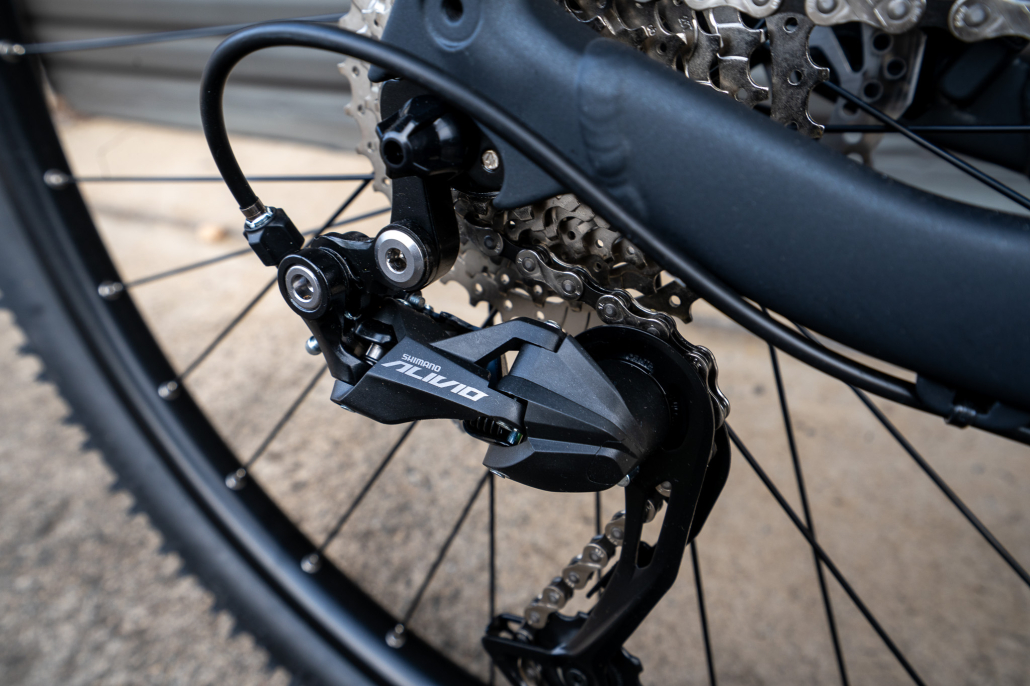

Rear Derailleur Shimano Alivio RD M3100SGS 9 Speed

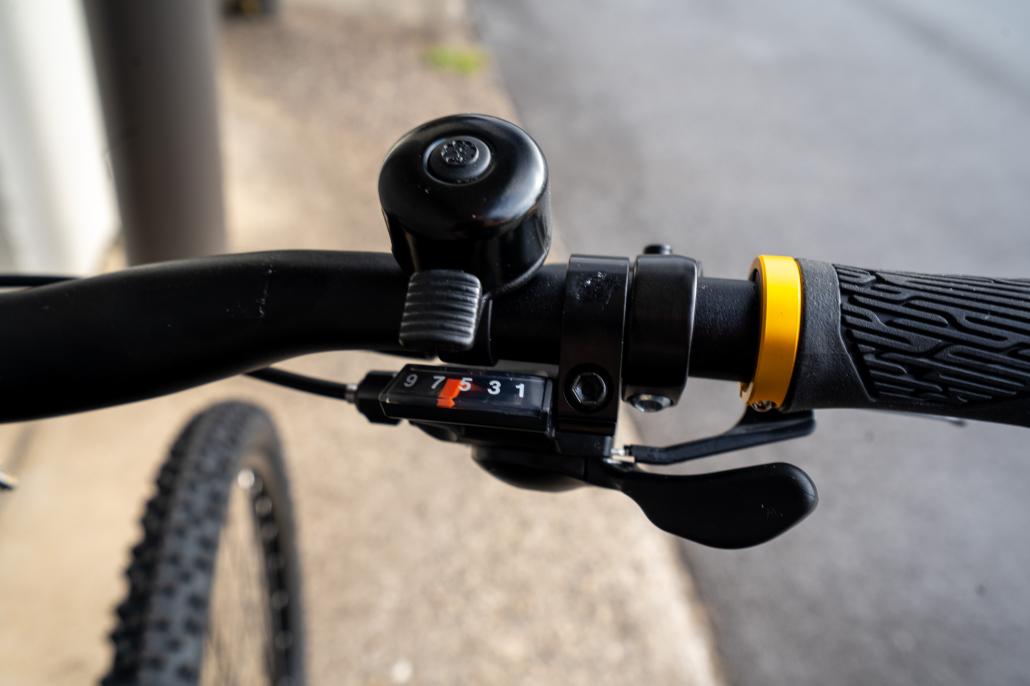

Shifters Shimano Alivio SL-M3100 9 Speed
Crankset Miranda 172,5mm
Chainring 38T Chainflow / Chainprotector
Chain KMC E9s NPBK
Cassette Shimano CS HG400 11-36

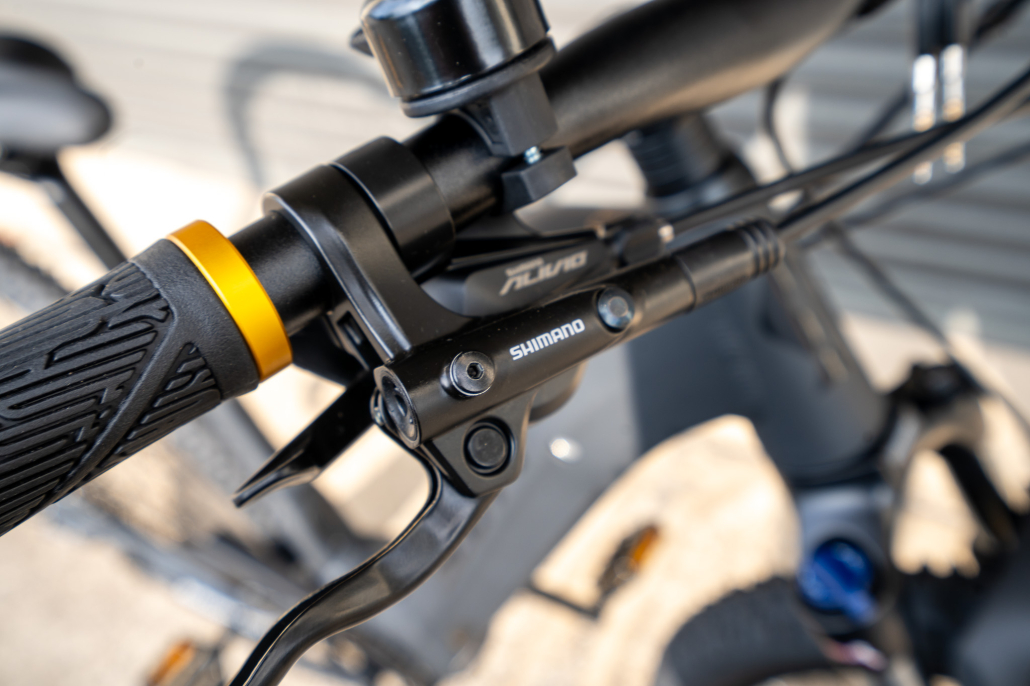

Brakes Shimano BR-M200 Disc
Rotor 180/F SM-RT10 and 160/R SM-RT10
Handlebar Syncros UC3.0 680mm / Rise 12mm / backsweep 15°

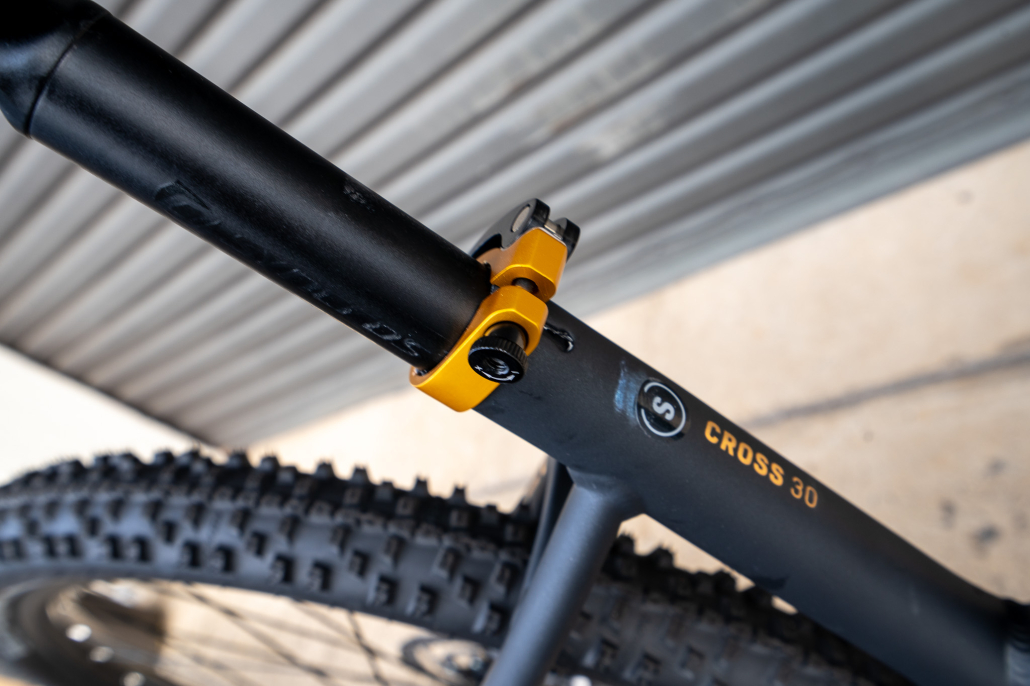

H’stem Syncros UC 3.0 adjustable
Seatpost Syncros 3.0 / 31.6mm / 350mm

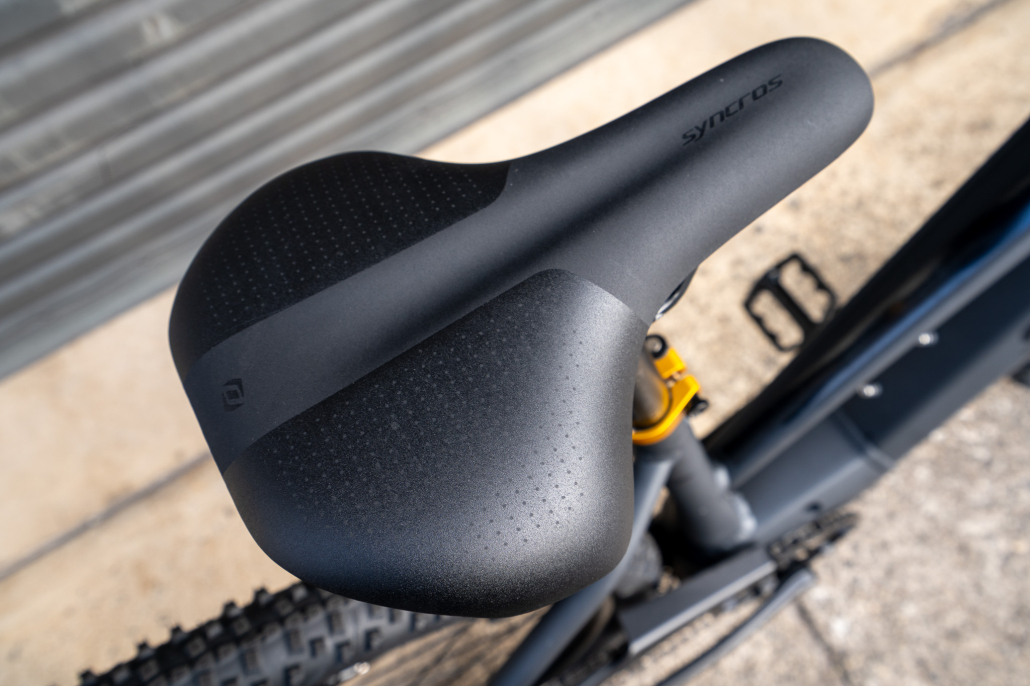

Seat Syncros Capilano
Headset GW semi integrated
Hub (Front) Shimano HBMT200B 32H QR CL
Hub (Rear) Shimano FHRM35BZBL5 32H QR CL
Spokes BLACK spokes * F: 14G / R: 13G
Rims Cross X17 Disc 32h
Rear Tire Schwalbe Smart Sam 29×2.25
Pedals VPE-506
Extras ABUS Battery Lock
Accessories Ursus Mooi Central kickstand
Approx weight in KG 25.7
Approx weight in LBS 56.66
Max. System Weight 128kg
